28,500.00 / Piece( + 18% GST applicable)
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Boring Tools |
| Feature | Accuracy |
| Click to view more | |
Product Details
Application
Industrial Use, Micro Boring Operations
Condition
New
Surface Finishing
Coated
Material
Alloy Steel
Color
Chrome
Compatibility
Milling Machines
Included Components
Boring Head, Boring Bars
Size
80 mm
Hardness
HRC 40-45
Boring Hole
16 mm
Graduation
1 Div.= 0.01 mm
Product Code
BTBH1680-BT40-IT5
Payment Terms
T/T

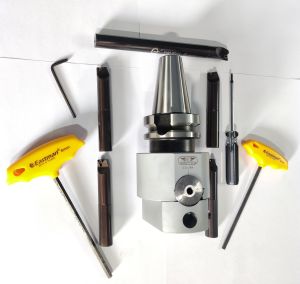

- Dia. 80 mm Boring Head Set (BTBH1680-BT40-IT5)
- Graduation: 1Div. = .01 mm
- Boring Hole: 16 mm
- Boring capacity: 16 mm to 150 mm
- Back Thread: M16 X 1.5
- Shanks: BT40
- Tools: Dia 16 mm TPGX09- Entry Dia 10, 12, 16, 20, Horizontal Boring Tool
This is a sturdy unit to ensure a chatter/ vibration free bore. Ideal for bigger milling machines such as ISO40/ ISO50 and CNC Milling Machines such as BT40 and CAT40 taper machines.
